32C500.220
Caprari pump MEC-AG 5/100A
{{ superAttribute.label }}
Price on request, please contact us
Including VAT
Excluding VAT
{{ price | price }}
{{ (specialPrice || tierPrice || price) | price }}
{{ Math.round(Math.abs(((specialPrice || tierPrice) - price) / price * 100)) }}% discount
Flange connection version (SAE)
SAE 3 (fitting size 409,6mm)
Brand
Caprari
Pump Type
Cenrtifugal
Type of kind
MEC-AG 5/100A
Pump version
Flanged pumps
Weight (kg)
190
Capacity - Max. (m3/hour)
234
Pump pressure rating
Middle pressure
Max. power 134hp
Not self-priming
Suction side: DN125
Pressure side: DN100
Shaft size: 45mm
Without flexible coupling
Capacity (1450 rpm) / Capacity (1750 rpm)
90.0m3 - 6.0 bar / 72.0m3 -8.8 bar
198m3 - 4.7 bar / 234m3 - 6.8 bar

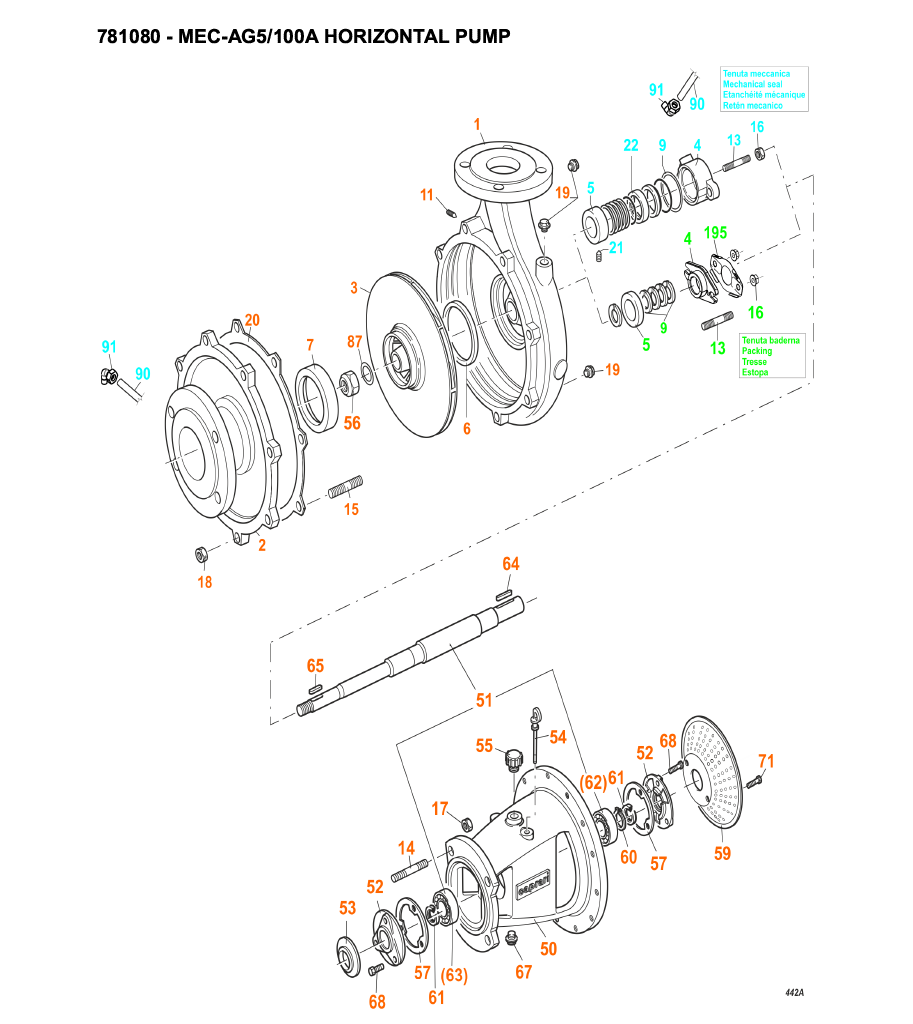

Wearing parts
Below you will find products that are categorized as wearing parts. These are often the parts of this product. Are you looking for the parts drawing of this product? Look at the attachment or in our download center and open the PDF.
