Tractor PTO shaft pumps low pressure

To achieve a pressure of 5 to 8 bar, which is necessary when using pipe irrigation, we can supply a PTO pump with one impeller, available with many types of transmissions.
When ordering, the brand, type and horsepower of the tractors must be specified.
This is needed to get the correct transmission of the pump.
These pumps are also available in high pressure, type S (CU2/S-D and CU3/S-D), for use with small reel irrigation (type AAA and A5).

Tractor PTO shaft pumps high pressure

To achieve a pressure of above 10 bar, which is necessary when using an irrigation machine (reel), for example, we can supply you with a PTO pump with two impellers.
The major advantages of the pumps compared to pumps with an impeller are: - Fewer PTO speeds required
for the same capacity. - Lower energy costs per hour. - Longer life span.
Available with many types of transmissions, allowing especially heavier tractors to run very quietly (1600 rpm).
These high-pressure pumps can also be completely assembled as a set and are available in many configurations.

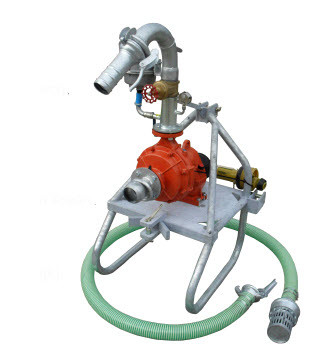

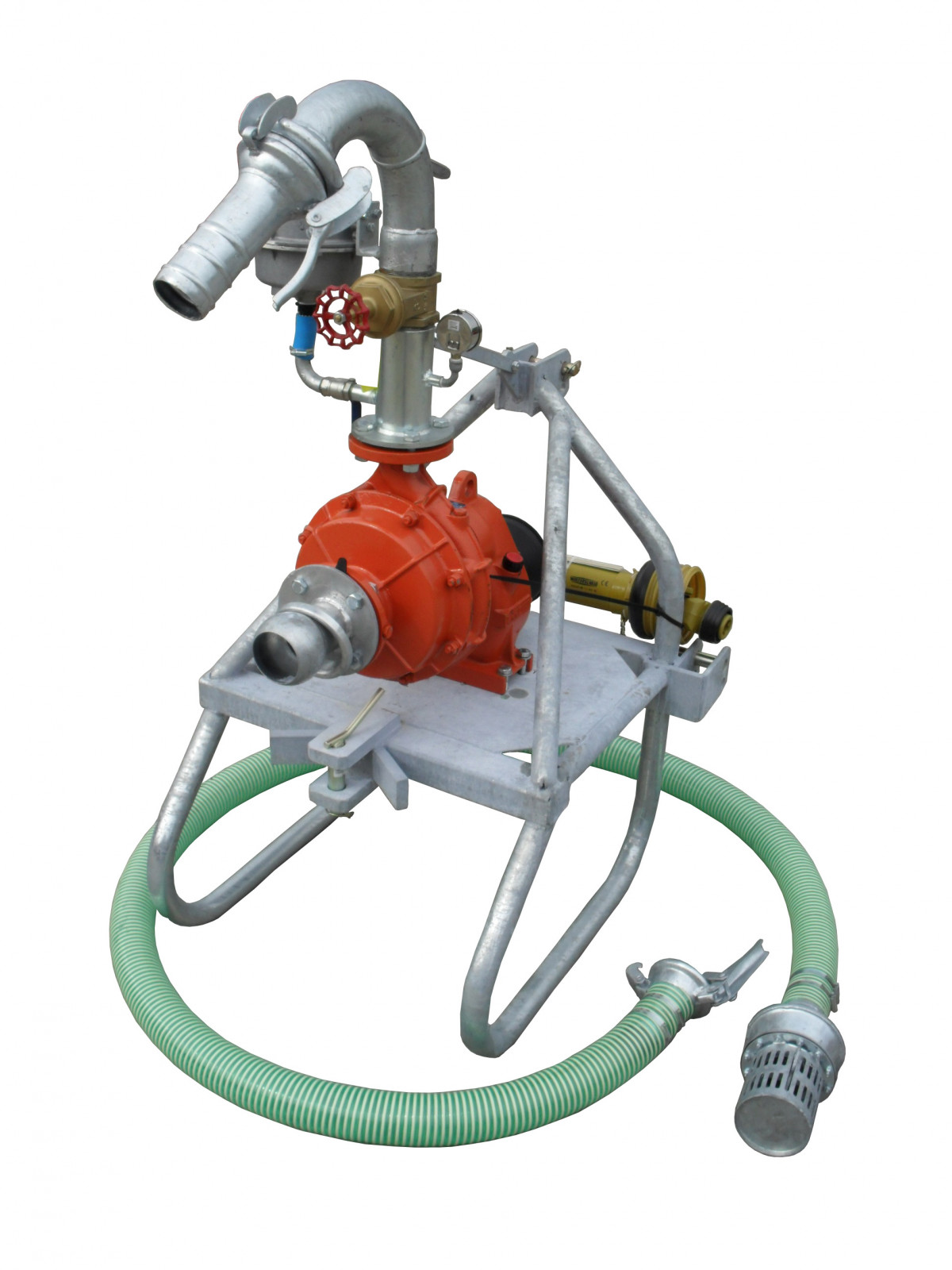

Landini pump set standard set

Set is supplied on a pump stand with a standard suction and pressure set with coupling of your choice including suction hose and PTO shaft.

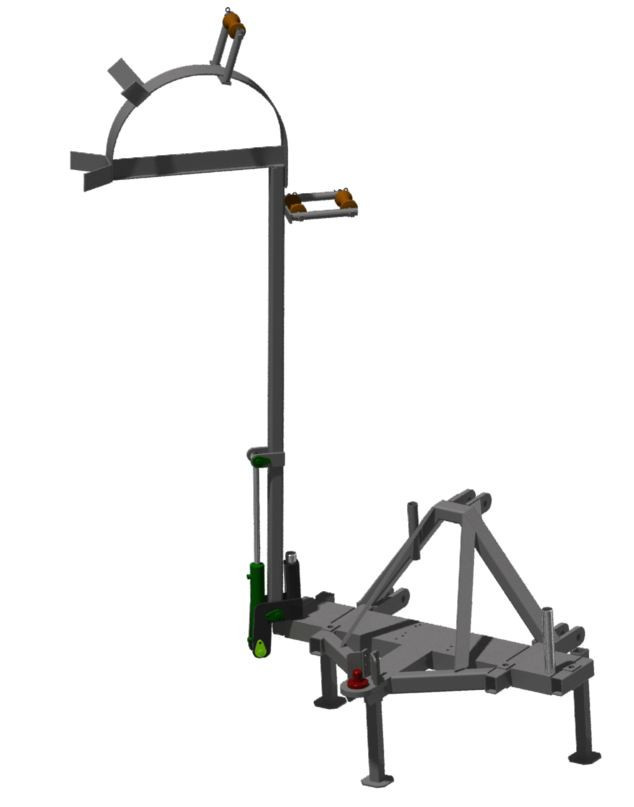

Landini pump set CMS series including hydraulic suction hose lift

Set is supplied on a pump stand with a standard suction and pressure set with coupling of your choice, including suction hose and PTO shaft and equipped with a hydraulic suction hose lift.
The suction hose is fitted with a square suction strainer as standard.

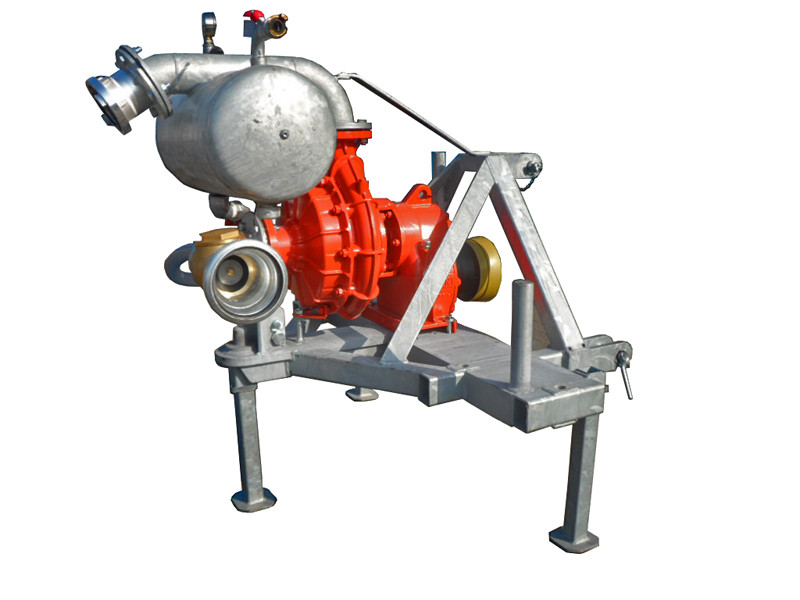

Landini pump set with a self-priming system

Converts your non-self-priming pump into a self-priming system

Applicable for tractor pumps and motor pumps

Available for various brands and types of water pumps using an adapter

Quick and easy start-up of your irrigation system

Fuel savings due to the elimination of the foot valve in the suction strainer

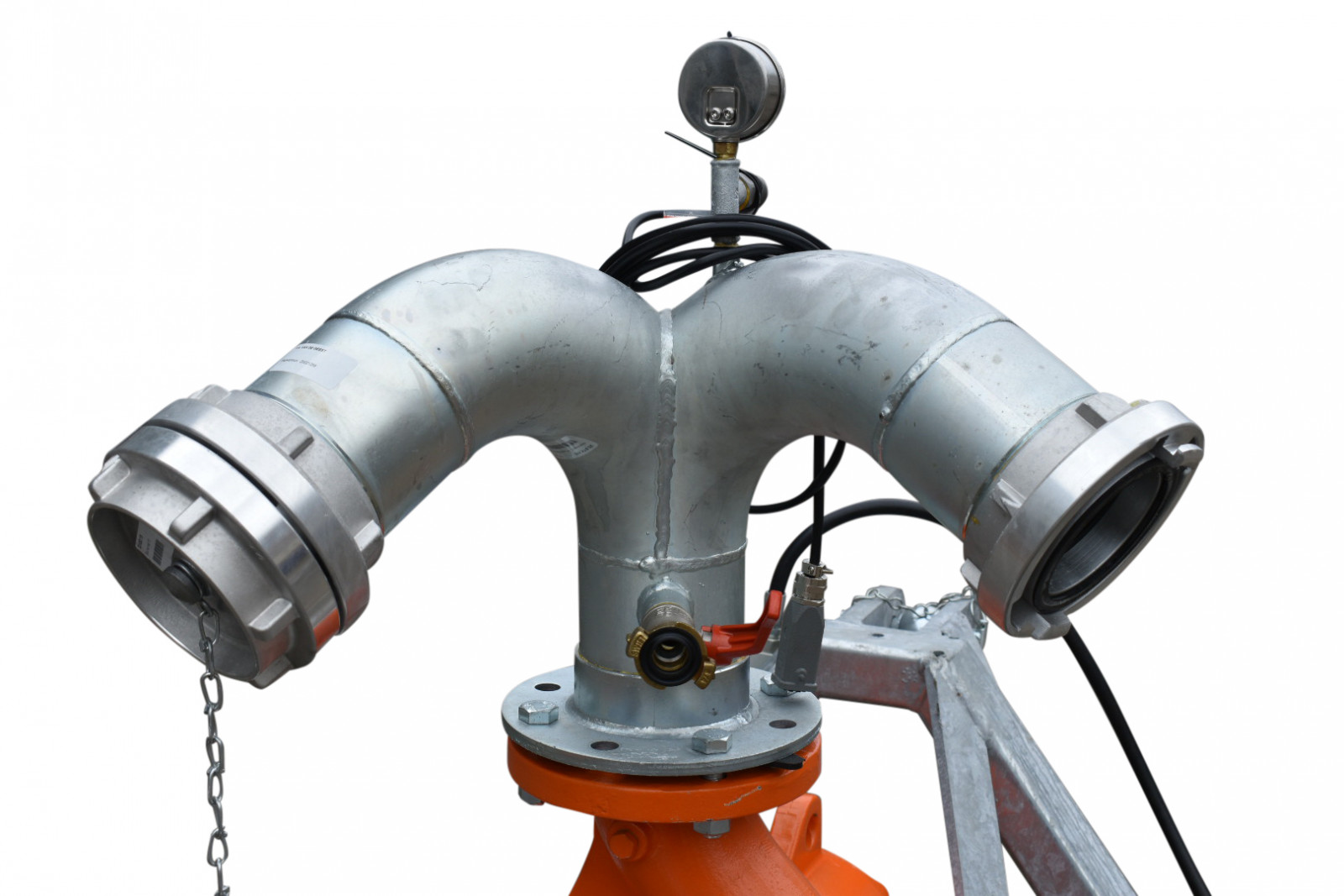

Landini pump set with bull's head

If desired, the pump sets can be equipped with a bull head with Storz couplings or couplings of your choice.

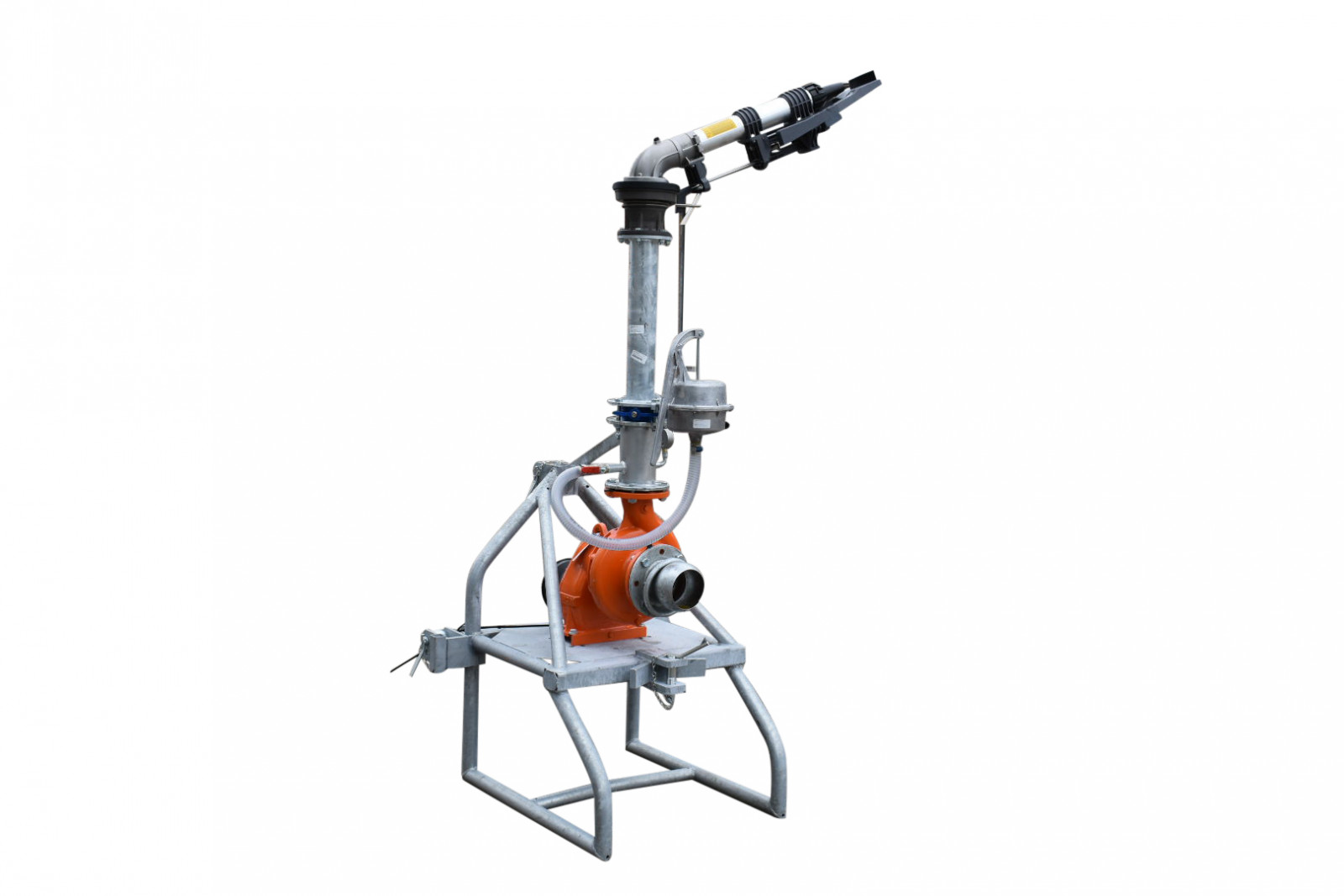

Landini pump set with direct nozzle connection

Set is supplied on a pump stand with a standard suction and pressure set and raised pressure flange for a nozzle connection.

Set is supplied excluding nozzle.

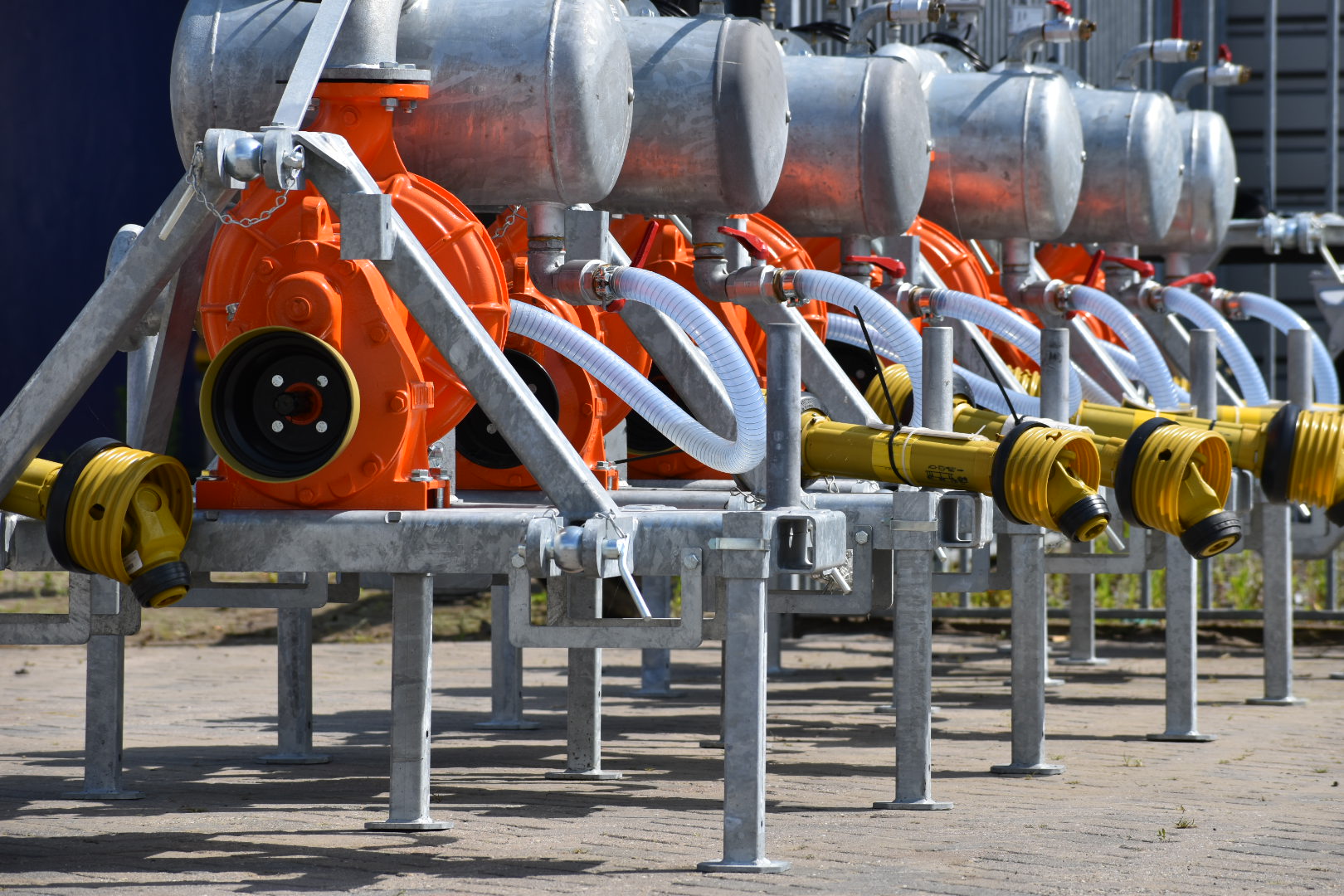

Pump sets available from stock

For most pump sets, we can supply most types and versions from stock.

Knowing more? Please feel free to call one of our sales advisors. 0228-565013
